ATH RG®10-2 WB Trac

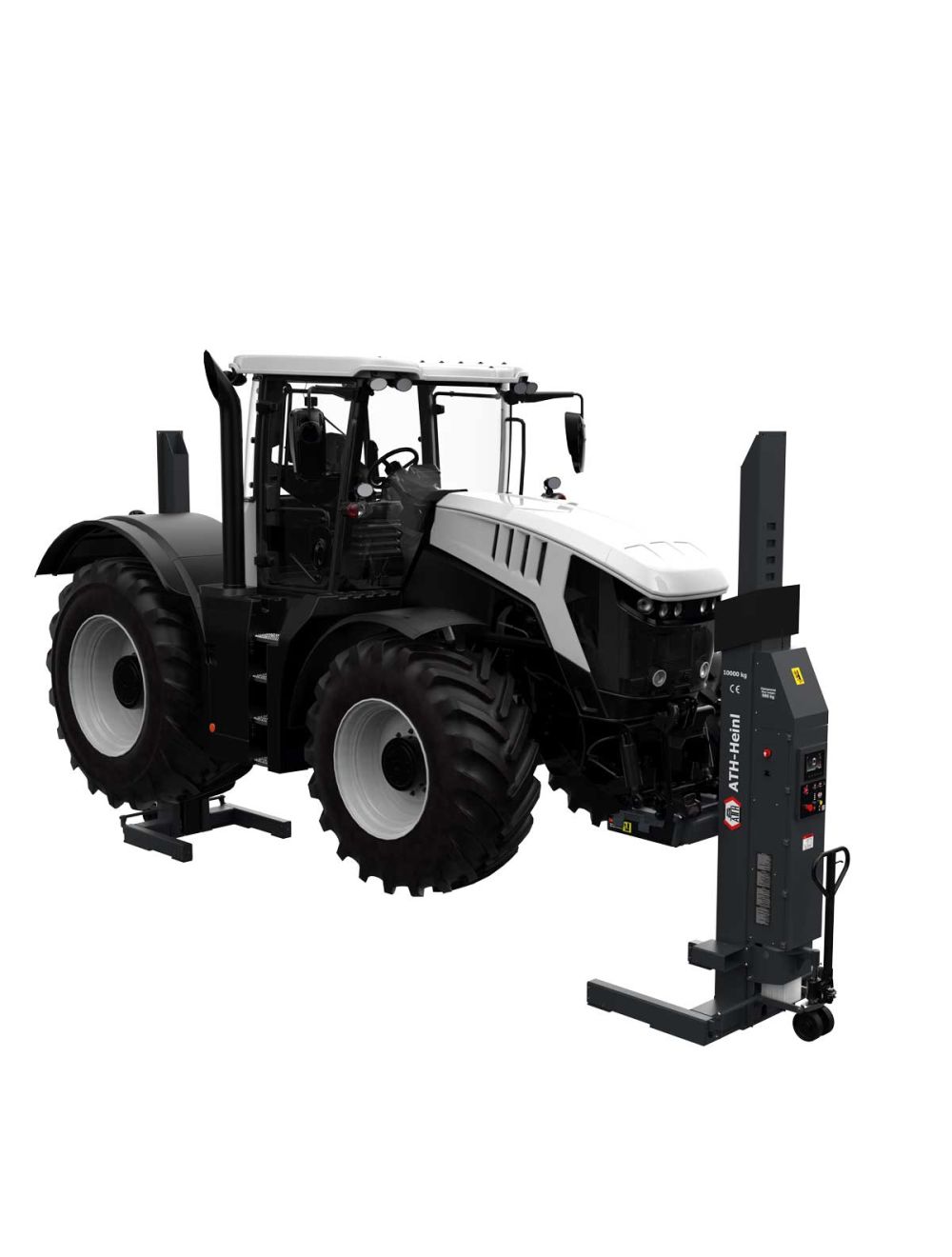

ATH RG10 WB 2-column lift incl. tractor adapter 710060
Dostupnost:
Skladem
SKU
710074
- Electro-hydraulic wheel gripper system with battery operation and wireless control
- Control unit including unit cover on each column for flexible use
- Master unit controls all operating information on each column and an extension up to 16 columns
- Integrated quick charger per column, enables charging during use.
- Mobile kit and forklift attachment on the columns enable a faster change of position
- Safety Control: hydraulic shut-off valve, electronic synchronization monitoring and electromagnetic safety locks
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via variable wheel fork with individual setting options
| Nosnost | 10.000 kg |
|---|---|
| Max. výška zdvihu | 1.850 mm |
| Výška sloupu | 2.650 mm |
| Šířka sloupce | 1.145 mm |
| Příkon | 2,2 kW |
| Čas zvedání / spouštění | 65s / 55s |
| Napájení | DC 24V |
| Komunikace ve sloupu | wireless |
| Základy | min. C20/25 Dicke: 200 mm |
Katalog produktů
We can also advise you by phone +49 (0) 9666 18801-00
Stáhnout produktový leták
