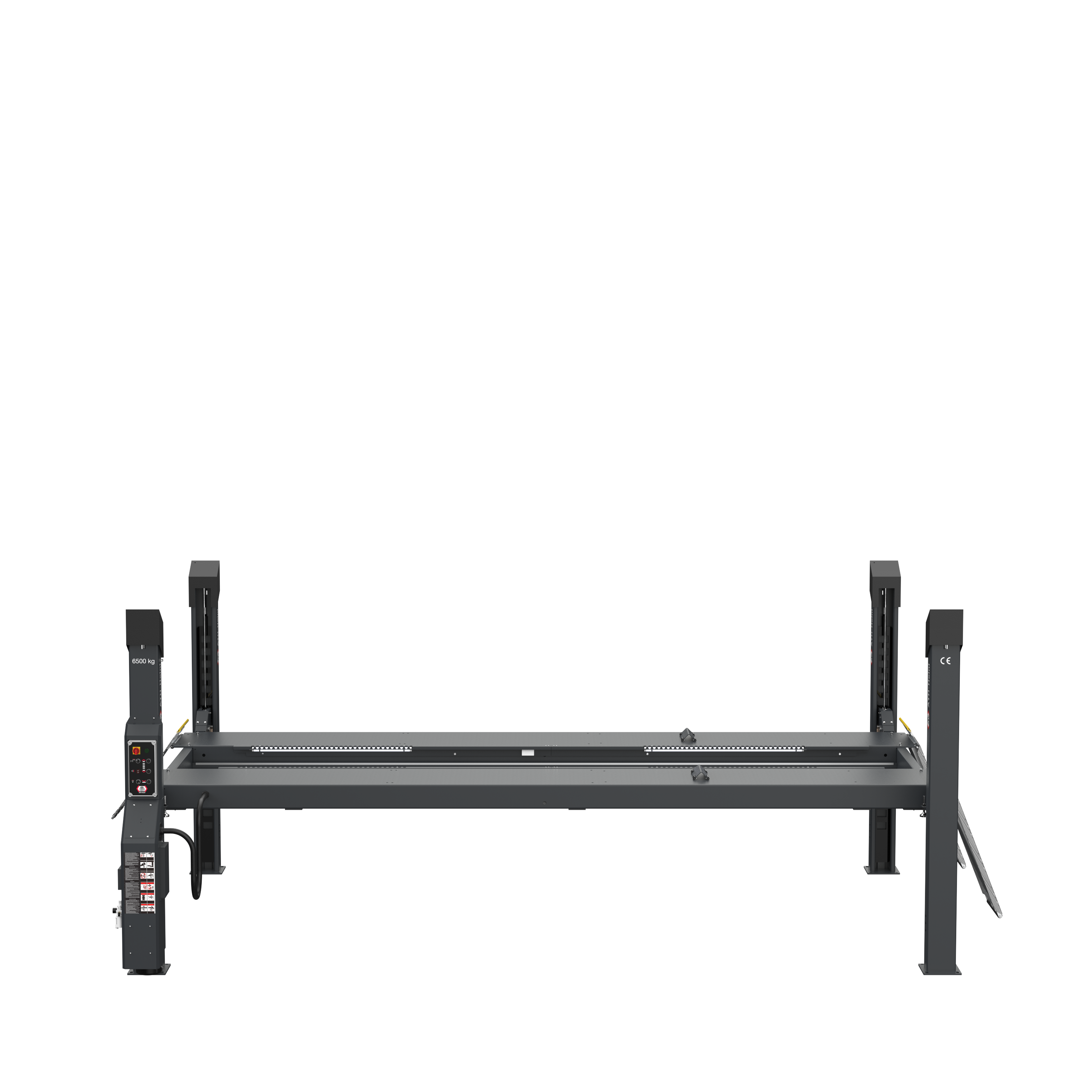

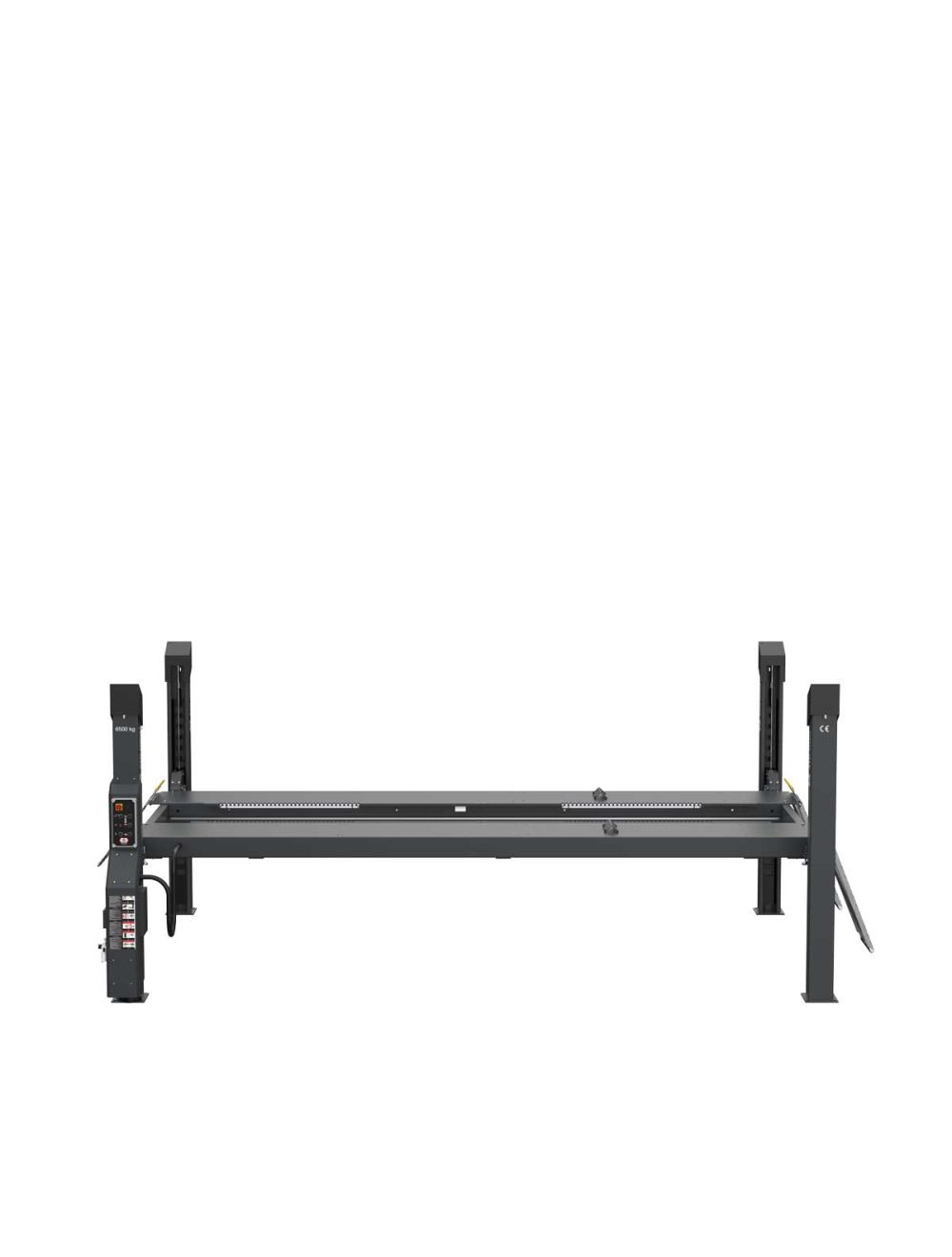

ATH Four Lift® 65P
Dostupnost:
Skladem
SKU
650040
- Electro-hydraulic 4-post lift with quick-lifting unit and load-dependent lowering function
- Central control unit, including unit cover
- ATH Four Lift 65P: Flat runway optional wheel alignment kit
- Precisely level-able Platforms due adjustable ratchet bars
- Safety Control: Electro-pneumatic safety latches that automatically unlock during lifting and lowering
- Safety Lock: Control for lowering the load onto the safety latches
- Multifunctional pick-up via slidable runways
- Perfect platform protection made of special polymer and double powder coating
| Barva | Anthrazitgrau / Schwarz |
|---|---|
| Nosnost | 6.500 kg |
| Max. výška zdvihu | 2.060 mm |
| Výška nájezdů | 225 mm |
| Délka plošin | 5.595 mm |
| Šířka plošin | 650 mm |
| Příkon | 4 kW |
| Čas zvedání / spouštění | ca. 45 s |
| Napájení | 3x 400V / C16A |
| Základy | min. C20/25 7.400 x 3.900 x 200 mm |
Katalog produktů
We can also advise you by phone +49 (0) 9666 18801-00
Stáhnout produktový leták
