ATH W®44 P Plus

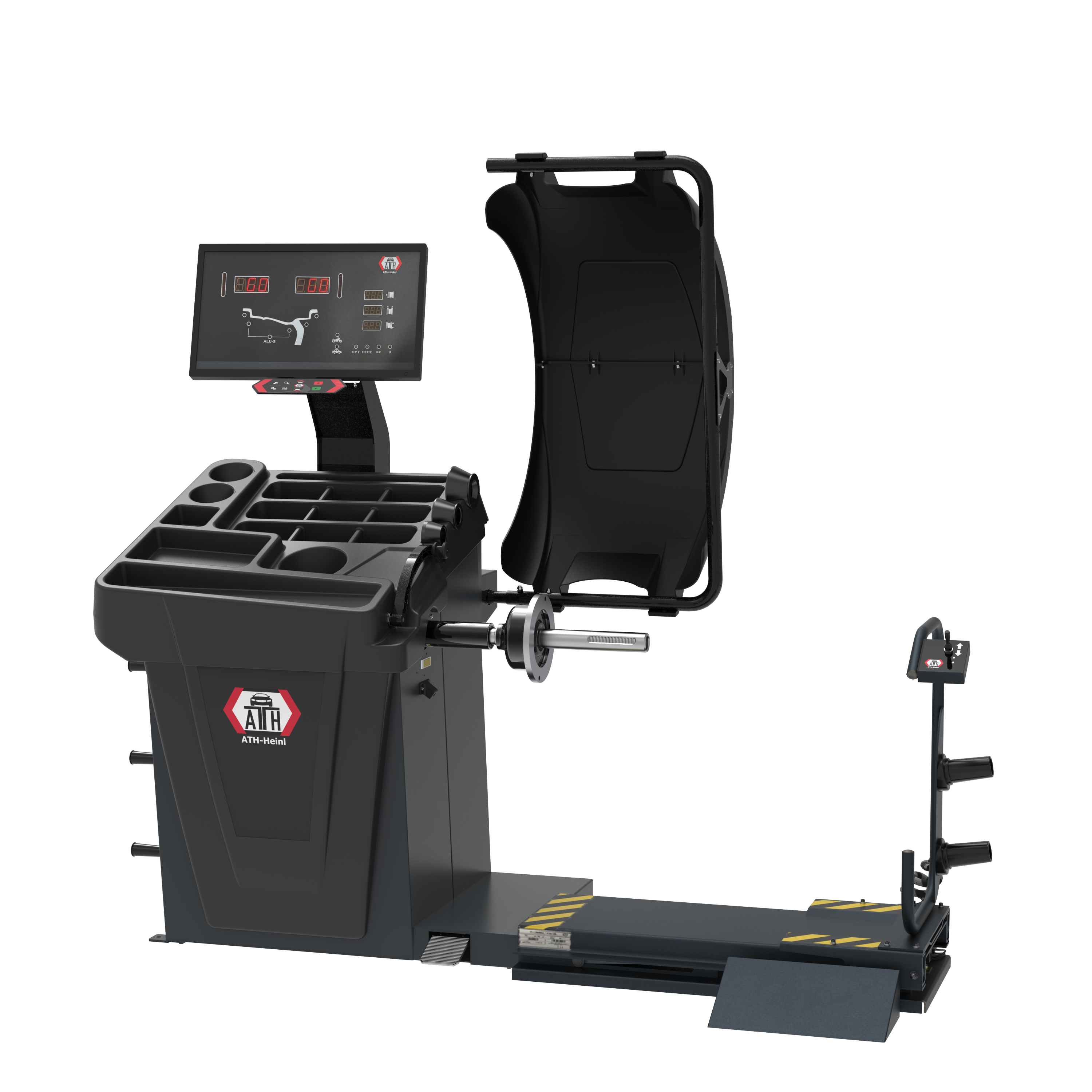

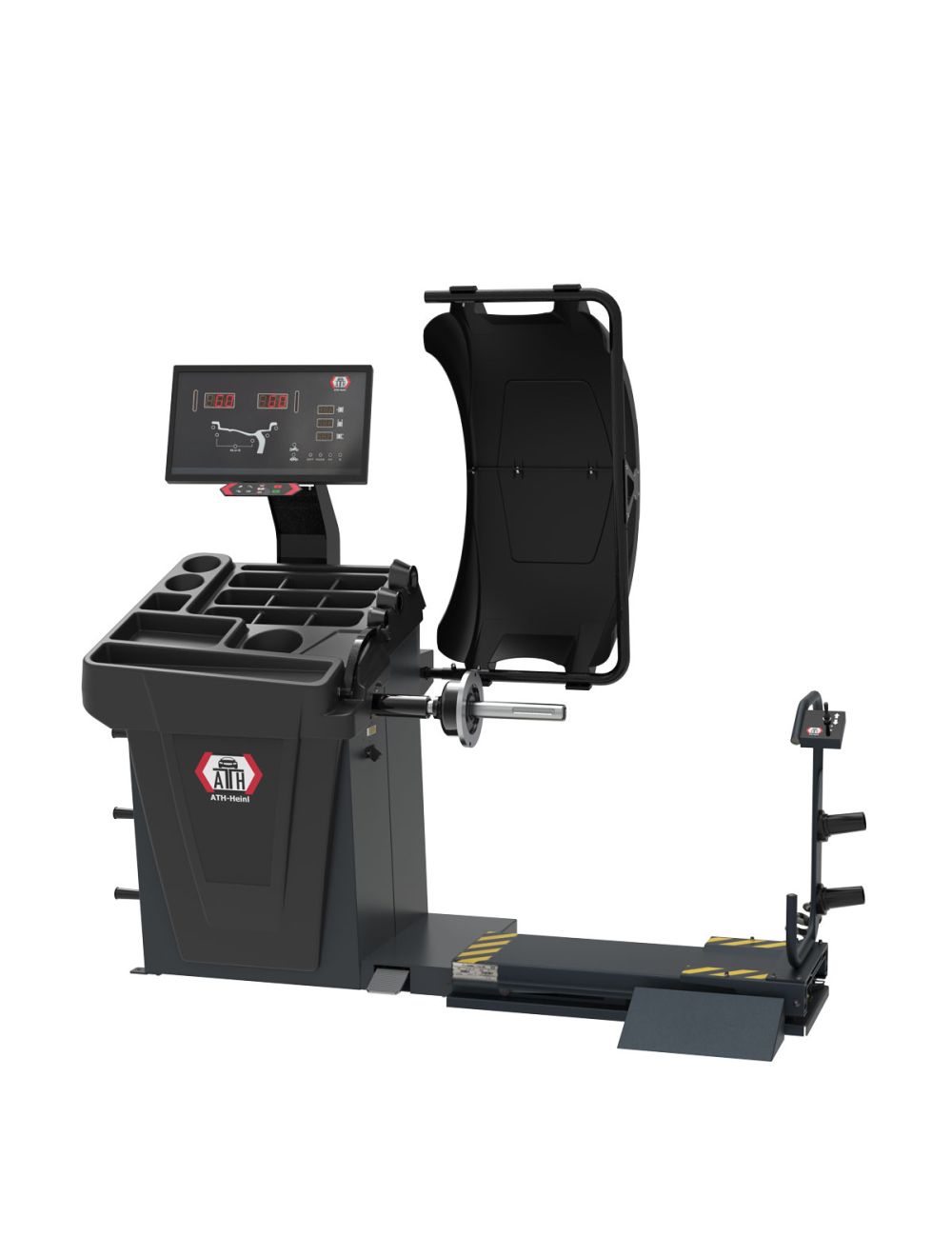

ATH W®44 P Plus delivers accurate passenger car wheel balancing for professional workshops. The pneumatic 40 mm clamping shaft secures the wheel, while sonar technology measures rim width contact‑free. Automatic positioning guides the wheel for fast and precise weight application, and a laser indicates the exact placement point at the 5 o’clock position. Includes a clear LED display, wheel lifter, Speedplate Kit 5 and a large hood.
Dostupnost: Skladem
SKU
150061
Sdílet na
  • Pneumatic shaft: 40 mm clamping shaft for quick and secure wheel clamping
  • Sonar technology: Non-contact rim width detection
  • Automatic positioning: Automatically positions the wheel for weight attachment
  • Extended clamping shaft: Additional clamping shaft for use with other clamping devices
  • Laser indicator: Enables precise placement of the clamping weights at the 6 o'clock position
  • Static/Dynamic program: Enables optimal balancing at different speeds
  • Alu balancing programs: Special programs for aluminum rims to improve balancing quality
  • Split rear spoke weight positioning: Enables precise weight distribution behind the spokes
  • Optimization program: Program for fine-tuning and optimizing the balancing process
  • Optional motorcycle function: Additional function for balancing motorcycle wheels

Including wheel lifter: ATH RRH1107

Including 5-finger speedplate kit

Including large clamping hood for aluminum rims

Scope of delivery:

  • - Rim gauge
  • - Weight pliers
  • - 100g stop weight
  • - Allen key
  • - Mounting tool for balancing shaft
  • - 4 cones 45 - 135 mm
  • - Quick-release nut
  • - Clamping cap
  • - Balancing shaft
Více informací
Průměr centrálního vývrtu 45 – 130 mm
Messzeit PKW | LKW 8 s
Tolerance měření +/- 1g
Rychlost měření 200 U/min
Šířka ráfku 1,5" - 20"
Průměr ráfku 10“ – 24“
Šířka kola max. 900 mm
Max. hmotnost kola 65 kg
Připojení stlačeného vzduchu 8 bar
Monitor 22“ LED
Příkon 0,20 kW
Napájení 230V / C16A
