ATH M®72Z PLUS WDK

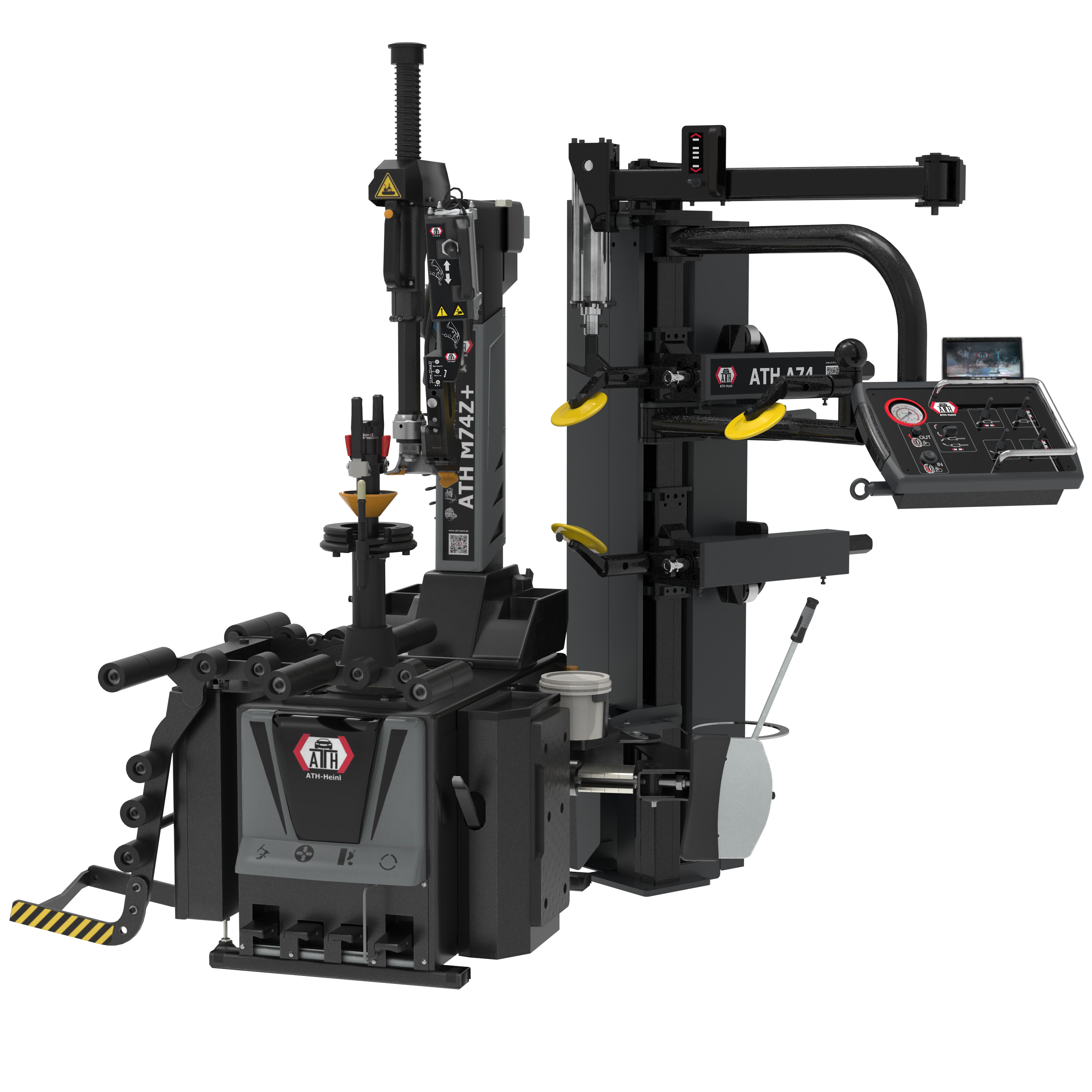

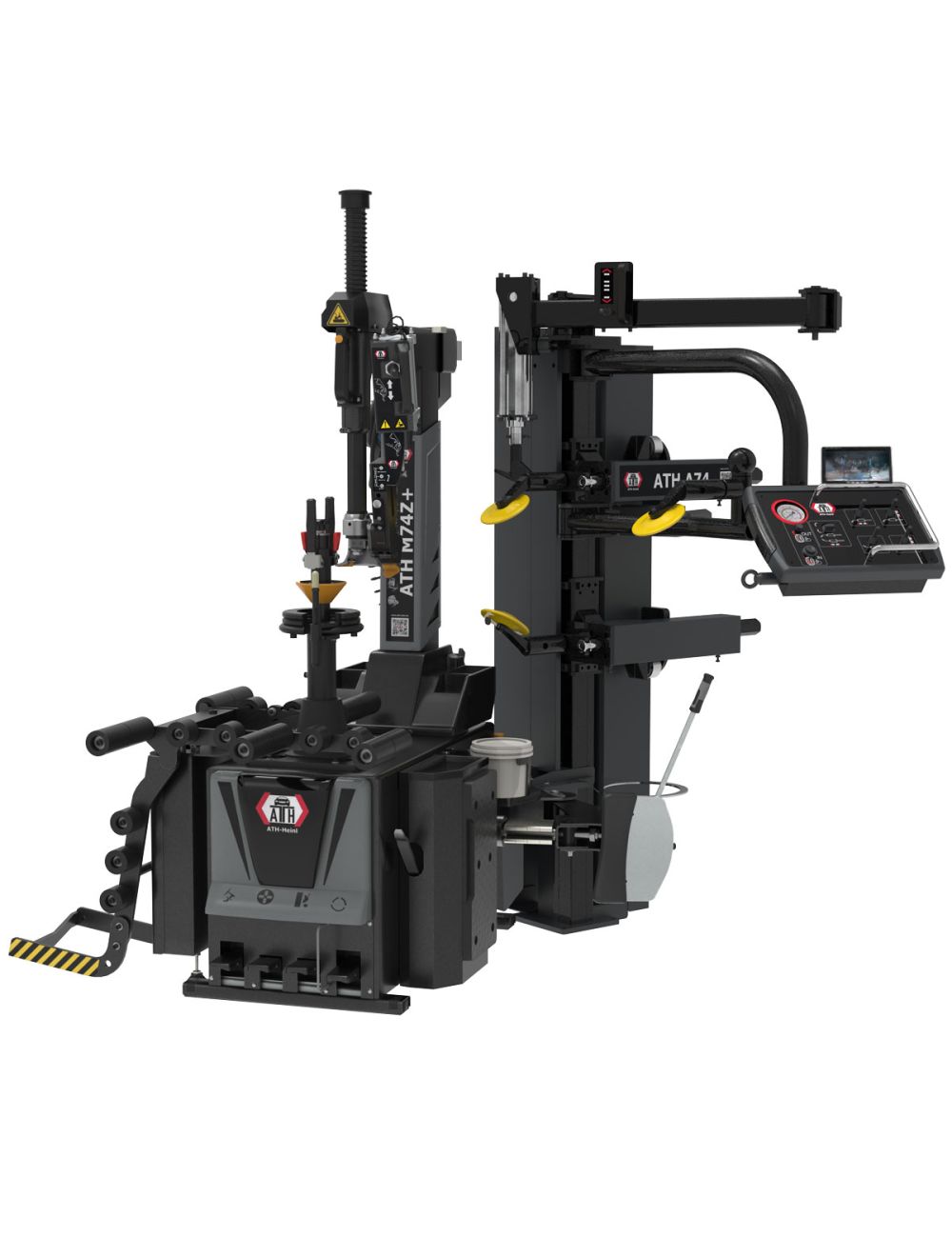

ATH M®74Z PLUS

The ATH M74Z Plus is the modern tire changer for maximum efficiency. The new A74 assist arm with additional bead-breaking function makes work easier. The integrated camera in the assist arm displays the wheel underside directly on the control panel for full control. The height-adjustable center hole clamping with flange and quick-lock nut ensures precise mounting. Perfect for workshops that value speed and convenience.

Dostupnost: Skladem

SKU

151064

Sdílet na

Informace o produktu

Podrobnosti

Video

Downloads

Rear swivel with pneumatic mounting head clamping including automatic vertical and horizontal rim removal
Control via ergonomically arranged foot pedals
Including pneumatic controlled auxiliary assembly arm for effortless and damage-free assembly of low-profile, UHP and run-flat tires
Height-adjustable center hole mounting with use of a clamping flange and quick-release nut
Lateral extractor with double-acting aluminium cylinder and anti-jamming system
Including wheel lift, quick release tool, pneumatic assembly tool and WDK kit

Více informací
Vnější upínací rozsah	12 - 26 "
Šířka ráfku	4 – 13 "
Šířka kola max.	1.050 mm
Připojení stlačeného vzduchu	10 bar
Rozsah srážeče patky	83 – 350 mm
Síla srážeče patky	2.500 kg
Rychlost montáž	6 and 12 U/min
Příkon	0,75 / 0,90 kW
Napájení	3x 400V / C16A
Úroveň hluku	70 dB(A)
